Umbrella and market stall components

Product catalogue

End caps, connectors and fixings for aluminium frames

We produce plastic components for aluminium umbrellas and stalls used by street markets, trade fairs and displays.

Quality materials, dimensional accuracy and compatibility with the main extruded aluminium profiles. All items are available in white RAL 9010 and black RAL 9005; other colours on request.

Range features

Designed for outdoor use

Components built to withstand sun, rain and intensive use, with quick assembly on umbrellas, stalls and modular structures.

Reliability

High-strength materials for secure fixing even with knocks and vibrations.

Precision

Controlled tolerances for easy fitting on aluminium profiles.

Long service life

Excellent resistance to UV rays, weathering and temperature changes.

Colours on request

Production in various colours for aesthetic or identification needs.

Umbrella line

Umbrella components

Top caps, runners, rosettes, end caps and fixings for the umbrella frame and canopy.

Cappello EU1001 – ETI Plast
EU1001

Top cap

EU1002

Runner

EU1003

Rosette

EU1004

Pole end cap

EU1005

Rib end cap

EU1006

Joint end cap

EU1007

Slotted end cap

EU1008

Triangle bracket

EU1009

Canopy clip

EU1010

4-hole plate

Stall line

Stall components

End caps and spacers for the aluminium profiles of market stalls.

EB2001

Plain end cap

EB2002

End cap with side hole

EB2003

Small rectangular end cap

EB2004

Small oval end cap

EB2005

Large oval end cap

EB2006

Double rectangular end cap

EB2007

Round spacer

Information and samples

Need a sample or a different colour?

Send us the item code and quantities: we will reply with availability, colours and supply terms.

Top cap EU1001 – technical drawing with dimensions
EU1001

Top cap

Fitted to the top of the umbrella or stall frame. It covers the end of the tube and protects canopy and frame from water and dust.

MaterialPE
AssemblyPress-fit on top of the profile
Operating temperature-20 ÷ +80 °C
Standard pack50 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Runner EU1002 – technical drawing with dimensions
EU1002

Runner

Fitted on the central pole, it opens and closes the canopy with smooth, stable sliding, even under intensive outdoor use.

MaterialPA6
AssemblySlides on the central pole
Operating temperature-30 ÷ +100 °C
Standard pack25 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Rosette EU1003 – technical drawing with dimensions
EU1003

Rosette

Connecting component acting as a spacer and reinforcement between elements: it keeps the profiles rigid and aligned over time.

MaterialPA6
AssemblyInserted or coupled on the central pole
Operating temperature-30 ÷ +100 °C
Standard pack25 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Pole end cap EU1004 – technical drawing with dimensions
EU1004

Pole end cap

Closes the bottom of the tube, protecting it from knocks, dirt and water ingress. The sealing fins ensure precise, secure fitting.

MaterialPA6
AssemblyPress-fit on the central pole
Operating temperature-30 ÷ +100 °C
Standard pack200 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Rib end cap EU1005 – technical drawing with dimensions
EU1005

Rib end cap

Fitted to the end of the umbrella rib, protecting it from knocks, dust and water ingress with a clean, even finish.

MaterialPP
AssemblyPress-fit on the profile
Operating temperature-20 ÷ +80 °C
Standard pack200 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Joint end cap EU1006 – technical drawing with dimensions
EU1006

Joint end cap

Fitted to the end of the rib near the joint, protecting joint and profile from knocks, dust and water ingress.

MaterialPP
AssemblyPress-fit on the profile
Operating temperature-20 ÷ +80 °C
Standard pack200 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Slotted end cap EU1007 – technical drawing with dimensions
EU1007

Slotted end cap

The side slot allows slight elastic adjustment and ensures a firm grip even with tube tolerances.

MaterialPP
AssemblyPress-fit on the profile
Operating temperature-20 ÷ +80 °C
Standard pack200 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information

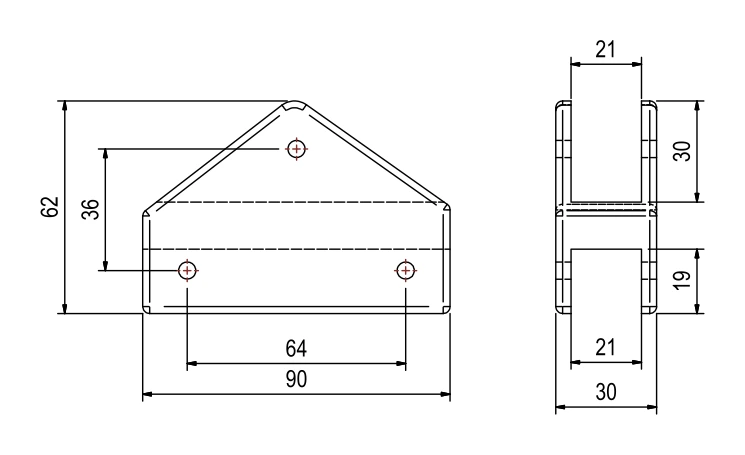

Triangle bracket EU1008 – technical drawing with dimensions
EU1008

Triangle bracket

Connecting component for fixing the ribs: it spreads loads during opening and closing and adds to the stability of the frame.

MaterialPA6
AssemblyMechanically fixed to the aluminium ribs
Operating temperature-30 ÷ +100 °C
Standard pack200 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Canopy clip EU1009 – technical drawing with dimensions
EU1009

Canopy clip

Secures the canopy to the ribs and keeps it in place even in wind and under intensive use.

MaterialPE
AssemblyInserted and fixed on the umbrella canopy
Operating temperature-30 ÷ +80 °C
Standard pack2000 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
4-hole plate EU1010 – technical drawing with dimensions
EU1010

4-hole plate

Fixes the canopy at several anchoring points for sliding covers and mechanical awnings, spreading tension evenly.

MaterialPA6
AssemblyMechanical fixing of the canopy to the frame
Operating temperature-30 ÷ +100 °C
Standard pack800 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Plain end cap EB2001 – technical drawing with dimensions
EB2001

Plain end cap

Closes the ends of market stall profiles, protecting the inside from dirt and the elements.

MaterialPP
AssemblyPress-fit on aluminium profiles
Operating temperature-20 ÷ +80 °C
Standard pack2000 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
End cap with side hole EB2002 – technical drawing with dimensions
EB2002

End cap with side hole

Closes the ends of the profiles; the through hole allows fixing with a screw or pin for secure anchoring.

MaterialPP
AssemblyPress-fit with screw or pin
Operating temperature-20 ÷ +80 °C
Standard pack1000 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Small rectangular end cap EB2003 – technical drawing with dimensions
EB2003

Small rectangular end cap

Closing and finishing cap for small rectangular profiles of aluminium stalls.

MaterialPP
AssemblyPress-fit on aluminium profiles
Operating temperature-20 ÷ +80 °C
Standard pack1000 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Small oval end cap EB2004 – technical drawing with dimensions
EB2004

Small oval end cap

Closing and finishing cap for small oval profiles of aluminium stalls.

MaterialPP
AssemblyPress-fit on aluminium profiles
Operating temperature-20 ÷ +80 °C
Standard pack500 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Large oval end cap EB2005 – technical drawing with dimensions
EB2005

Large oval end cap

Closing and finishing cap for large oval profiles of aluminium stalls.

MaterialPP
AssemblyPress-fit on aluminium profiles
Operating temperature-20 ÷ +80 °C
Standard pack500 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Double rectangular end cap EB2006 – technical drawing with dimensions
EB2006

Double rectangular end cap

Closes two side-by-side profiles at once, with a neat, even finish.

MaterialPP
AssemblyPress-fit on aluminium profiles
Operating temperature-20 ÷ +80 °C
Standard pack500 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
Round spacer EB2007 – technical drawing with dimensions
EB2007

Round spacer

Keeps the correct distance between components, improves alignment and reduces wear caused by direct contact between parts.

MaterialPP
AssemblyFitted on fixing screw or pin
Operating temperature-20 ÷ +80 °C
Standard pack5000 pcs
ColoursWhite RAL 9010 – Black RAL 9005
other colours on request
Request information
